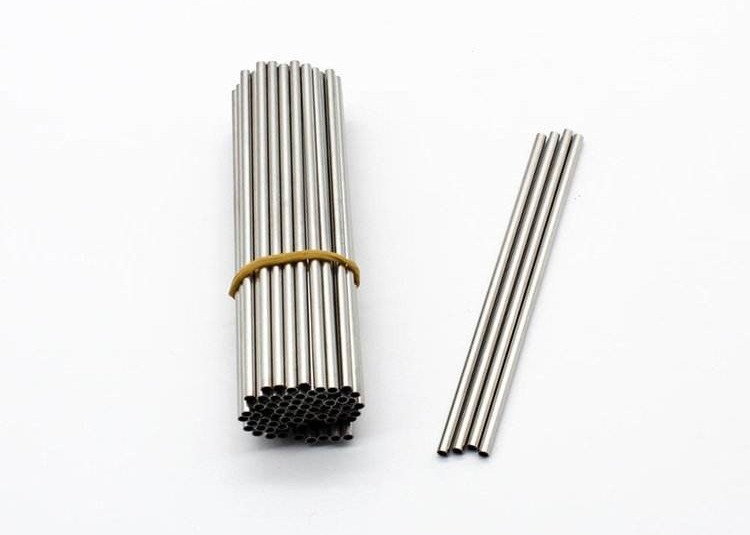

8x1mm 304 Stainless Steel Capillary Tube High Precision 304L

  • 8x1mm 304 Stainless Steel Capillary Tube High Precision 304L
Place of Origin China
Brand Name TaTa Steel
Certification CE
Model Number 304L 304
Minimum Order Quantity 10 Ton
Price Negotiable
Packaging Details Seaworthy export packing with fumigated wooden pallets or steel pallets
Delivery Time 10-15days
Payment Terms L/C, D/A, D/P, T/T
Supply Ability 10000 Tons per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 8x1mm High Precision SS Capillary Tube Grade 304 304L
Alloy Or Not Non-Alloy Wall Thickness 1mm
Dimensions 3~500mm Or Customized Outer Diameter 10mm
High Light

cn TaTa steel 8x1mm 304 stainless steel capillary tube

,

8x1mm 304 stainless steel capillary tube cn TaTa steel

,

cn TaTa steel 304L ss capillary tube
Leave a Message
Product Description

8x1mm High Precision SS Capillary Tube 304 304l Stainless Steel Capillary Pipe

Stainless Steel Capillary Pipes & Tubes are used in different applications of intra/extra cellular biology, separation sciences, hematology sampling and study, biotechnology, and biochemistry. Capillary Tube is a long, narrow tube of constant diameter.

We manufacture special sizes of Stainless steel 304/304L capillary tubing’s also called as Stainless steel 304/304L surgical tubes which are critical and used in various Instrumentation, Medical and Heat treatment industry.





Gauge		 Outside Diameter Tolerance mm Regular Wall Thickness (RWT) mm Thin Wall Thickness mm Extra Thin Wall Thicknessmm Ultra Thin Wall Thickness mm
30 0.304 – 0.317 0.064 – 0.089
29 o.330 – 0.342 0.064 – 0.089
28 0.355 – 0.368 0.076 – 0.102
27 0.406 – 0.419 0.089 – 0.115 0.064 – 0.089
26 0.457 – 0.469 0.089 – 0.114
25 0.508 – 0.520 0.115 – 0.140 0.089 – 0.114
24 0.558 – 0.571 0.114 – 0.140 0.089 – 0.114   0.051 – 0.102
23 0.635 – 0.647 0.140 – 0.165 0.089 – 0.114   0.051 – 0.102
22 0.711 – 0.723 0.140 – 0.165 0.096 – 0.121 0.077 – 0.102 0.051 – 0.102
21 0.812 – 0.825 0.140 – 0.165 0.102 – 0.127   0.051 – 0.102
20 0.901 – 0.914 0.108 – 0.165 0.108 – 0.134
19 1.054 – 1.079 0.166 – 0.216 0.102 – 0.140 0.070 – 0.108
18 1.257 – 1.282 0.191 – 0.241 0.127 – 0.165 0.083 – 0.121 0.051 – 0.102
17 1.460 – 1.485 0.177 – 0.229 0.115 – 0.152 0.083 – 0.127 0.057 – 0.102
16 1.638 – 1.663 0.204 – 0.254 0.127 – 0.165 0.096 – 0.133 0.070 – 0.121
15 1.816 – 1.841 0.204 – 0.254 0.127 – 0.165 0.096 – 0.134 0.070 – 0.121
14 2.082 – 2.133 0.216 – 0.292 0.165 – 0.229 0.114 – 0.165 0.076 – 0.134
13 2.387 – 2.438 0.267 – 0.343 0.191 – 0.267
12 2.743 – 2.749 0.267 – 0.321
11 3.023 – 3.073 0.293 – 0.368 0.216 – 0.292
10 3.378 – 3.429 0.318 – 0.394 0.216 – 0.292

8x1mm 304 Stainless Steel Capillary Tube High Precision 304L 0
