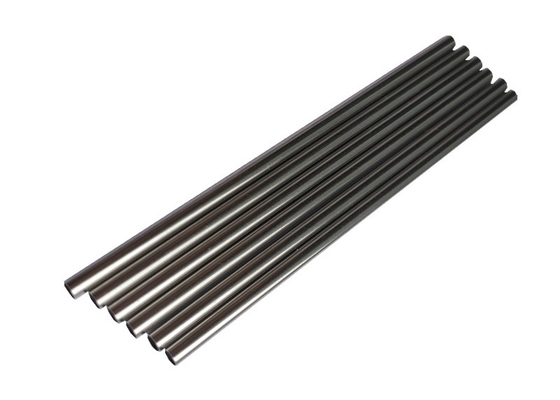

Seamless 316 Stainless Steel Tubing 0.3mm-8mm Seamless Steel Tube For Aerospace

  • Seamless 316 Stainless Steel Tubing 0.3mm-8mm Seamless Steel Tube For Aerospace
Place of Origin China
Brand Name TaTa Steel
Certification CE
Model Number 316
Minimum Order Quantity 10 Ton
Price Negotiable
Packaging Details Seaworthy export packing with fumigated wooden pallets or steel pallets
Delivery Time 10-15days
Payment Terms L/C, D/A, D/P, T/T
Supply Ability 10000 Tons per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Seamless Steel Tube For Aerospace Grade 316
Process Method Welded,precision Rolled,cold Drawn Wall Thickness 0.3mm-8mm
Length Cut Into Pcs Outer Diameter 6mm-10mm
High Light

316 Stainless Steel Tubing

,

Seamless Stainless Steel Tubing

,

0.3mm stainless steel pipe
Leave a Message
Product Description

Seamless 316 Stainless Steel Tubing , Seamless Steel Tube For Aerospace

Stainless Steel Capillary Pipes & Tubes are used in different applications of intra/extra cellular biology, separation sciences, hematology sampling and study, biotechnology, and biochemistry. Capillary Tube is a long, narrow tube of constant diameter.



We manufacture special sizes of Stainless steel 304/304L capillary tubing’s also called as Stainless steel 304/304L surgical tubes which are critical and used in various Instrumentation, Medical and Heat treatment industry.



Capillary Tubes Specification

Specifications : ASTM, ASME, AISI

Size : 1mm OD to 10mm OD

Thickness : 0.7 mm to 3.68 mm

Schedules : 5S, 10S, 20S, 40S, XS, 80S, 100S, 120S, 160S, XXS etc.

Length : Single Random, Double Random & Required Length

Form : Round Pipes/Tubes, Square Pipes/Tubes, Rectangular Pipe/Tubes, Coiled Tubes, “U” Shape, Pan Cake Coils, Hydraulic Tubes

End : Plain End, Beveled End, Treaded







Type Chemical Composition(%)
ASTM C Cr Ni Mn P S Mo Si Cu N
TP304 ≤0.08 18.0-20.0 8.0-11.0 ≤2.00 ≤0.045 ≤0.030 - - - ≤1.00 - - - - - -
TP304L ≤0.035 18.0-20.0 8.0-13.0 ≤2.00 ≤0.045 ≤0.030 - - - ≤1.00 - - - - - -
TP304H 0.04-0.10 18.0-20.0 8.0-11.0 ≤2.00 ≤0.045 ≤0.030 - - - ≤1.00 - - - - - -
TP310S ≤0.08 24.0-26.0 19.0-22.0 ≤2.00 ≤0.045 ≤0.030 ≤0.75 ≤1.00 - - - - - -
TP316 ≤0.08 16.0-18.0 11.0-14.0 ≤2.00 ≤0.045 ≤0.030 2.00-3.00 ≤1.00 - - - - - -
TP316L ≤0.035 16.0-18.0 10.0-14.0 ≤2.00 ≤0.045 ≤0.030 2.00-3.00 ≤1.00 - - - - - -
TP316N ≤0.08 16.0-18.0 11.0-14.0 ≤2.00 ≤0.045 ≤0.030 2.00-3.00 ≤1.00 - - - 0.10-0.16
TP317L ≤0.035 18.0-20.0 11.0-15.0 ≤2.00 ≤0.045 ≤0.030 3.0-4.0 ≤1.00 - - - - - -
TP321 ≤0.08 17.0-19.0 9.0-12.0 ≤2.00 ≤0.045 ≤0.030 - - - ≤1.00 - - - ≤0.10
TP321H 0.04-0.10 17.0-19.0 9.0-12.0 ≤2.00 ≤0.045 ≤0.030 - - - ≤1.00 - - - - - -
TP347 ≤0.08 17.0-19.0 9.0-13.0 ≤2.00 ≤0.045 ≤0.030 - - - ≤1.00 - - -

- - -



Seamless 316 Stainless Steel Tubing 0.3mm-8mm Seamless Steel Tube For Aerospace 0



About us

Wuxi Tata Steel Co., LTD., located in Wuxi city, Jiangsu Province, is a steel export and custom design company. The main products of the company: seamless steel tube, alloy tube, heat exchanger steel tube, capillary, alloy round steel, Hastelloy, H-shaped steel, I-beam, Angle steel, channel steel, flat steel, round steel, galvanized profile, our seamless steel tube series, smooth appearance, no oxidation layer. The products areapplicable to engineering, coal mine, textile, electric power, boiler, machinery, military, automobile manufacturing, petrochemical, aerospace, boiler equipment, medical equipment and other industries and other fields. Comply with Chinese national standard (GS) and American standard (ASTN). The company has advanced product testing instruments, excellent marketing team and domestic channel partners, the product market development and product after-sales service has a perfect management plan. Sales network and product sales organizations throughout the country. Strong and professional r & D team and advanced and perfect sales and service concept make our products have a high popularity and market share at home and abroad. At the same time, we will always adhere to the "reputation first, customer first" principle, always put the interests of customers in the first place, dedicated to each customer to provide the best products and the best service!

FAQ

Q: What the main products you can supply?

A: We are the professional and famous factory in China for Stainless steel sheet/ Coils/Tubes/ Profiles/ Composite packaging Materials; Carten steel;Wear Resistant steel and Carton steels.

Q: Will you can accept the customized and OEM products?
A: Yes,we can do the production based on your drawings and with your logo,also because we have very strong design and development
team,so the feedback is very good for customized product.

Q: What is your payment terms?
A: Commonly two payment term for new customers
1 ) 30%T/T as deposit,70% balance against B/L copy.
2)100% Irrevocable L/C at sight.
If you need other terms, please feel free to contact us too, we will try our best.

Q: How about the samples? Is it free to extra fees?
A: Yes,we would like to supply the samples before order, if the samples from stock, it will be free,if the samples from new
production, we will charge some reasonable cost, but this amount will be deducted from your first order invoice.
